Any operation other than those listed in the manual and which can be performed by the user must be carried out by a qualified specialist. The device must be de-energized before repair or maintenance. Water flowing out at temperatures above 50 °C can cause serious burns. The tank must be filled with water before switching on the heating. The device must not be connected to a hose! The use of insulating spacers is mandatory for connection to a red copper water supply network!It is forbidden to put the device under a pressure higher than the operating pressure specified in the manual and is life-threatening! It is forbidden to install a water pipe fitting between the safety valve and the device and to drain water dripping in a way that is not visible! The pressure reducing valve and the safety valve may only be installed and operated in a frost-free environment. It is forbidden to operate the hot water tank without protective earthing.

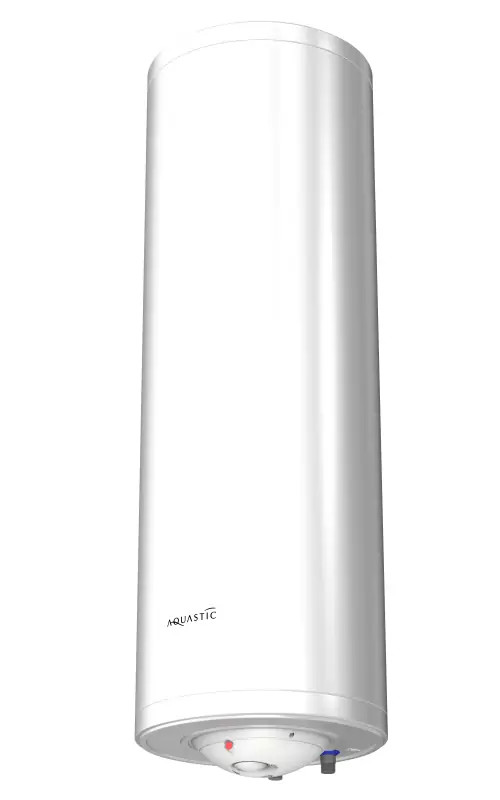

Description Closed-loop hot water tankLocation Wall-mounted verticalVolume (l) 80Voltage (V) 230Heating power (W) 1800Current consumption (A) 8Heating time from 15oC to 65oC (h) 2.8Standby energy consumption at 65oC (kWh/24h) 1.58Water connection G1/2Weight empty (kg) 28Nominal operating pressure (MPa) 0.6Maximum opening pressure of safety valve (MPa) 0.7Built-in safety control elements Integrated temperature controller / limiting, combined safety valveOther protection Active anodic corrosion protection
