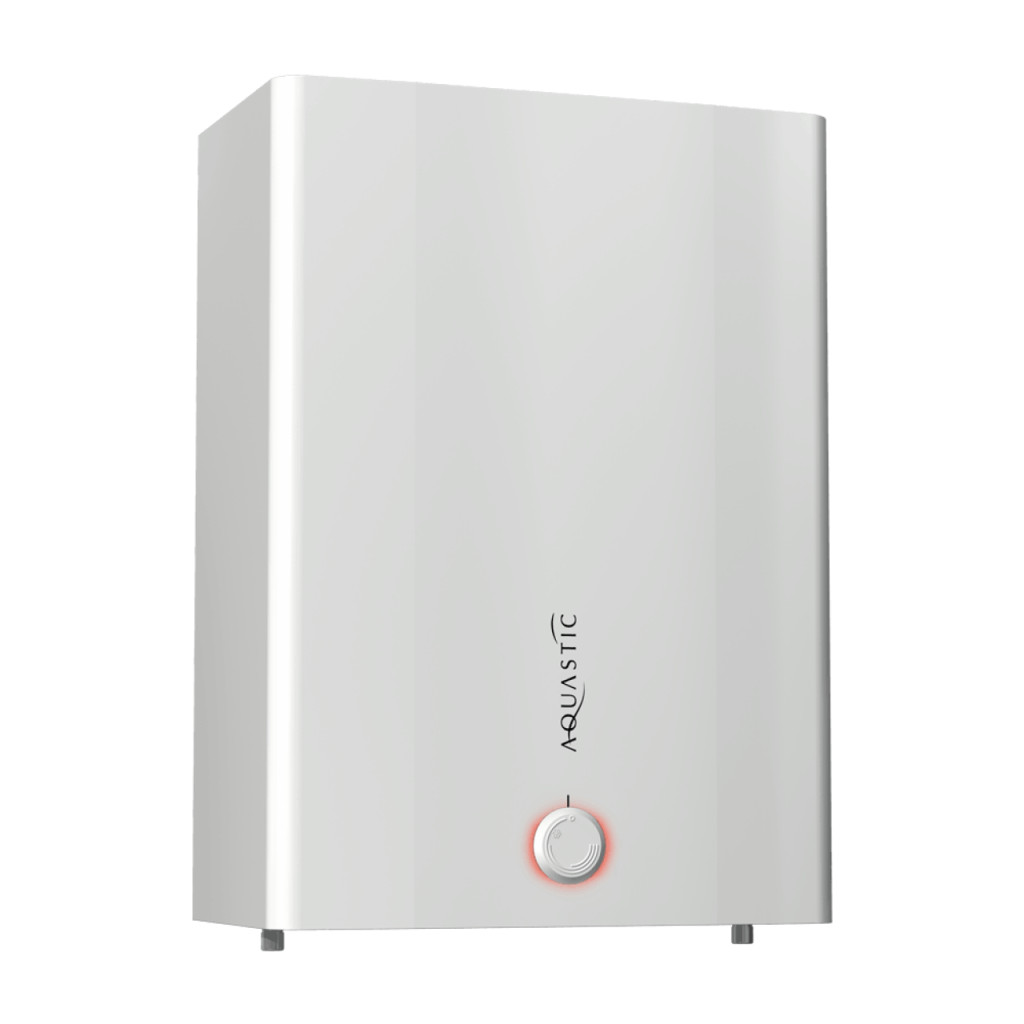

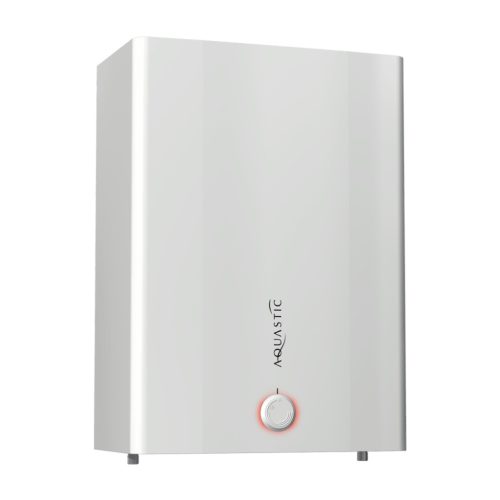

AQUASTIC FLAT type familyOn-trend, electrically heated, wall-mounted vertical/horizontal hot water storage tankA new generation, square, double-tank flat hot water storage tank family, in the reliable HAJDU quality that has been familiar for over 50 years!A narrow device, its protrusion from the wall is half that of traditional designs.Can also be installed in a built-in cabinet.Their great advantage is that it can be placed on the wall in both vertical and horizontal positions.
An energy-saving device that can be operated from controlled current, equipped with an integrated automatic limiting temperature controller.
The outer casing of the device is high-gloss, nanoceramic surface-treated steel sheet.
The primary corrosion protection of the welded steel sheet tank in the boilers is provided by a special, titanium-containing fire enamel coating, and its secondary protection is provided by a magnesium active anode.
This construction solution guarantees excellent corrosion protection of the tank even in aggressive (soft) waters. The thermal insulation of the tank is freon-free polyurethane foam, which ensures long-term heat retention of the hot water.The device is also suitable for supplying several water points simultaneously. The stored hot water is suitable for both bathing and cooking purposes.HAJDU Zrt. provides a 7-year warranty on the tanks and a 2-year warranty on other components, regardless of water hardness, with an anode inspection only required every 2 years!
Energy-savingMechanical (knob) control, with LED lightingCan be placed both vertically and horizontallyDouble tank designNanoceramic surface-treated outer casing and titanium-containing fire enamel inner tank surfaceNarrow device, its protrusion from the wall is half that of traditional designsA common shape for wall-mounted boilersCan also be installed in a built-in cabinetCan be operated from controlled currentEasy to installPractical cable outlet
Type
Aquastic AQ Flat F120 ErP electric hot water tank
Voltage
L120
Weight
kg56
Width
mm600
Height
mm1165
Depth
mm325
Hz230V/50
Hot water temperature
°CMax. 65
Protection degree
IP X4
Heating power
W1200+800
Heating element type
tube heating element
Current consumption
11 A
Heating time from 15 °C to 65 °C
h3.4
Standby energy consumption at 65°C
kWh/24h1.74
Hot water supply (V40) L 145Water connection
G ½
Nominal operating pressure
MPa0.6
Maximum opening pressure of safety valve
MPa0.7
Built-in safety and control elements Temperature controller,temperature limiter,combined safety valveOther protection
Active anodic corrosion protection
Touch protection class
I.
