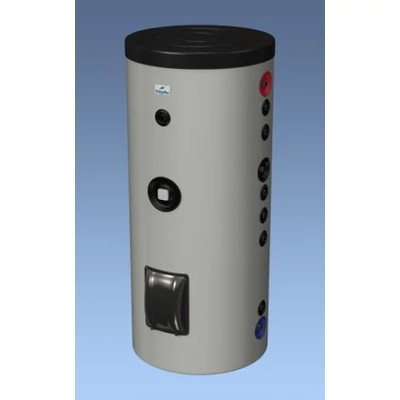

Capacity: 300The advantage is that when installing the steatite heating element, it only needs to be placed in the steatite casing tube of the closing cover, so the closing cover does not need to be removed.Extremely good heat retentionMulti-energy operabilitySpecial fire enamel tank coatingOptional steatite heating element 3.2 kW (STA300…) can be orderedActive anodic corrosion protectionCirculation branchHAJDU Zrt. provides a 3-year full warranty and a 10-year tank warranty on the product.All types are equipped with a thermometer branch for direct thermometer installation, branches for placing temperature sensors to control the operation of the lower and upper heat exchanger, and a circulation branch.
The hot water tank has a closed system design, so it is suitable for supplying hot water to several water points. The resulting water is suitable for both bathing and cooking purposes.
The excellent polyurethane thermal insulation foam surrounding the inner tank ensures that the water remains warm for a long time, with minimal energy consumption. The inner tank of the hot water tank is protected against corrosion by a special fire enamel coating and an active anode. This ensures a long service life of the tank even in the most aggressive waters.
Depending on their design, these hot water tanks can be heated from several energy sources (with a solar collector and/or any boiler, and can also be equipped with lower and/or upper - located at medium height - electric additional heating, which can be connected on request).
The thermal insulation of the 200-300 liter devices is 47 mm. The outer jacket is a gray plastic jacket with a black plastic cover.
A ceramic heating unit can be ordered separately for the STA 200-300 devices, which can be installed as a lower heating unit at a later date.
The hot water tank consists of a heat-insulated enamel tank and a plastic jacket. The height of the hot water tank can be adjusted in intervals of 20-40 mm by adjusting the legs.
Volume300 lh1530 mmd661mma210mmb630mmc930mme364mmf1025mmg1403mmi890mmj720mmInsulation materialFCKW-free PUWater connectionG 3/4Max. operating pressure0.6 MpaStandby energy2.5 kWh/24hBottom heat exchanger volume8.5 lCoil surface1.5 m2Coil connectionRP 3/4Coil flow resistance130 mbarPeak capacity *510 liters/ the first 10 minutesContinuous capacity *1100 liters/hContinuous capacity *45 kWHot water temperaturemax. 95 °CWeight93 kgStorage loss94 WEnergy efficiency classC
