The Hajdu STA 1000C 1000 Liter 1 Heat Exchanger Indirect Storage Tank is primarily designed for heating with a solar collector and/or any boiler, and can also be equipped with lower and/or upper - placed at mid-height - electric additional heating if desired. Lower and upper electric heating can be purchased separately. The tanks can be of lower (...C) or lower and upper heat exchanger design (...C2). Each device has a thermometer and a circulation nozzle. The thermal insulation of the 200-300 liter devices is 47 mm, the 400-500 liter ones are 50 mm and the 800-1000 liter ones are 100 mm. The outer jacket is a gray plastic jacket with a black plastic cover.
HAJDU Zrt. the product is guaranteed for 3 years in full and 10 years in the tank.
capacity: 1000 litersextremely good heat retentionmulti-energy operabilityspecial fire enamel tank coatingelectric backup heatingactive anodic corrosion protectioncirculation branch

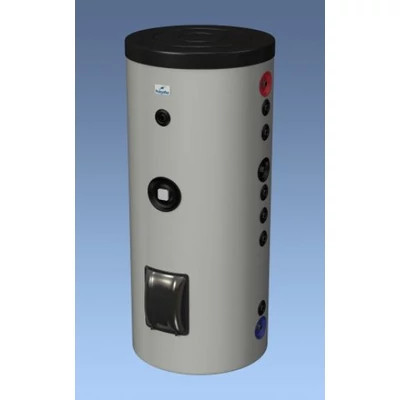

Hajdu STA 1000C 1000 Liter 1 Heat Exchanger Indirect Storage Tank
Capacity
L1000
Height
mm2350
Diameter
mm1000
Water connection:
G6/4
Max. operating pressure:
6 bar
Standby energy
kWh/24h4.2
Coil surface
m22.4
Coil connection:
G5/4
Coil flow resistance
mbar48
Peak capacity
L/first 10 minutes
1500
Continuous capacity
L/h952
kW39
Hot water temperature:
max. 95oC.
Circulation branch connection:
Radiator branch connection:
Weight
kg284
