HAJDU Hajdúsági Ipari Zrt. started manufacturing household appliances in 1957. At first, they only produced centrifuges and washing machines, and then gradually expanded their product range to include hot water tanks, indirect tanks, solar systems, boilers, buffer tanks and boilers. It is important for the company to satisfy consumer needs at the highest level possible, providing its customers with high-quality, environmentally friendly products, for which it guarantees a wide and reliable service and spare parts supply.

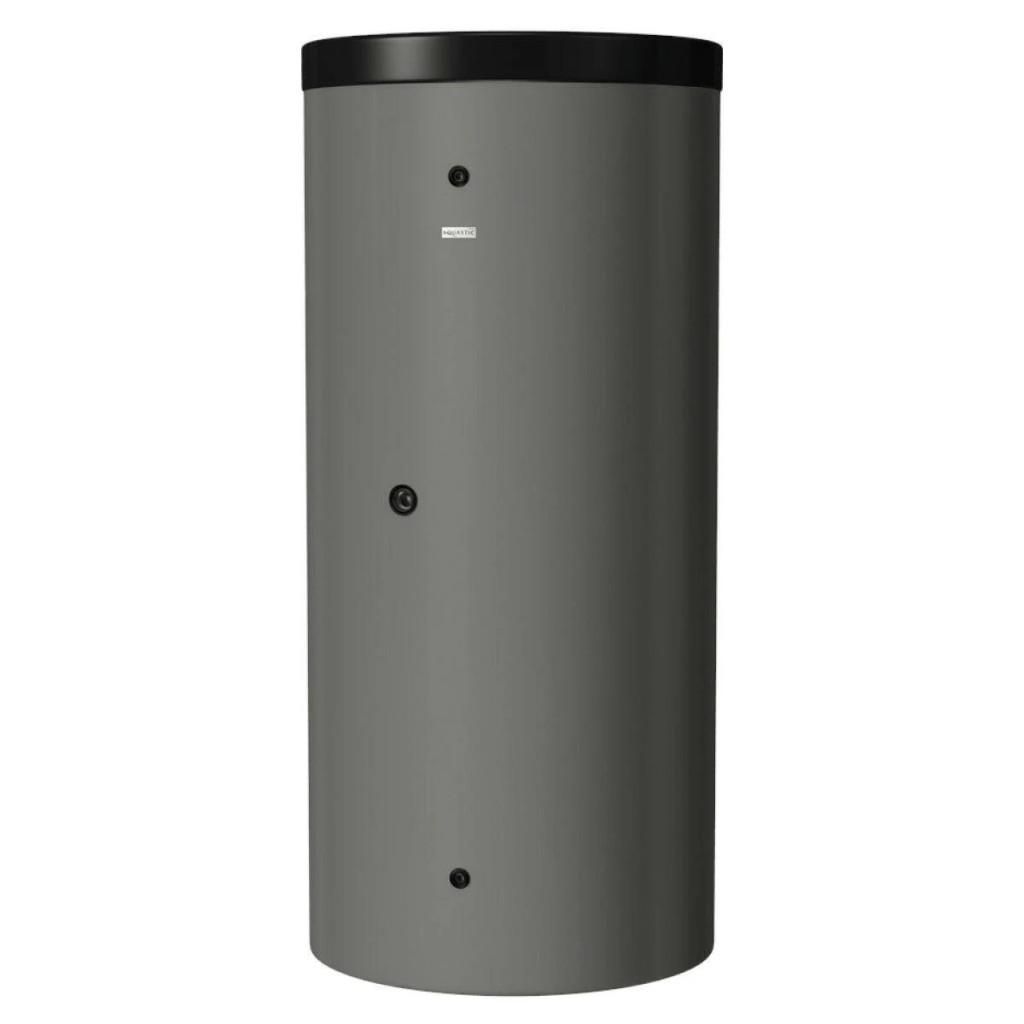

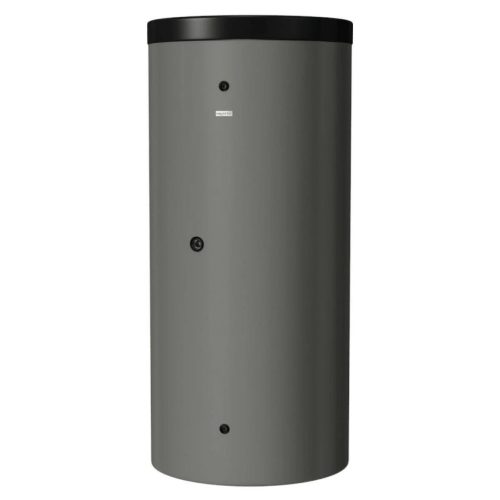

The Hajdu AQ PT6.2 500 C2 ErP is a 500-liter buffer tank, which serves as a heat storage tank for closed, hot water central heating systems. The buffer tank has two heat exchangers, but an electric heating cartridge can also be installed. Since the inner surface of the tank has no corrosion protection, it can only be filled with heating water and is not suitable for storing drinking water. The Hajdu AQ PT6.2 500 C2 does not have ErP insulation, but it can be purchased separately.
500-liter, closed-system, free-standing buffer tankServes as a heat storage tank for hot water central heating systemsContains 6 Rp 6/4” connection nipples for connecting heat generators and heat emittersBuffer tank systems can also supply hot water when combined with an indirect tankIt has two heat exchangers, but an electric heating cartridge can also be installedUninsulated version, but can be purchased separatelyThe sensors can be placed in the casing pipes on the jacketA safety valve and expansion tank must be installedIt does not have a drain and temperature sensor nippleAlso an excellent choice for solar systemsNot suitable for storing drinking waterCan only be filled with heating water90° nipple arrangementLong service lifeExcellent qualityHungarian product3-year warrantyEnergy efficiency rating: C
Technical dataNominal capacity: 500 lHeight with insulation: 1670 mmTipping height without insulation: 1700 mmDiameter with insulation: 850 mmDiameter without insulation: 650 mmBottom coil surface: 1.7 m2Upper coil surface: 1 m2Maximum operating pressure of tank: 0.3 MPaMaximum operating pressure of upper solar coil: 0.6 MPaMaximum operating pressure of lower solar coil: 0.6 MPaElectric heating element connection: Rp 6/4Sensor connections: External casing pipeCoil connection: Rp 1Water connection: Rp 6/4Storage loss: 114 WWeight with insulation: 103 kg
