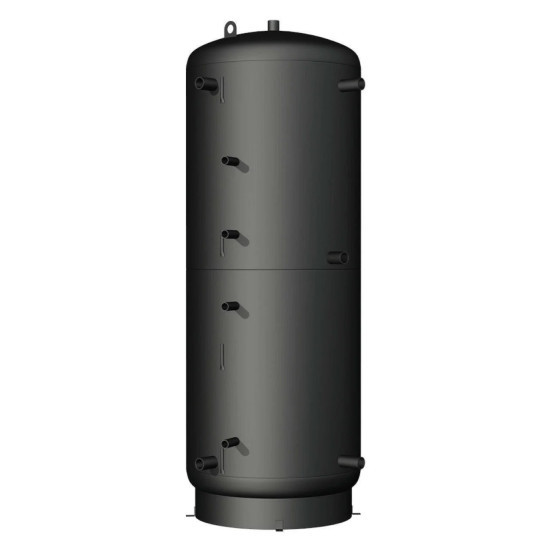

A stationary, closed system, 1000 liter buffer tank
Serves as a heat storage tank for hot water central heating systems
Contains 6 Rp 6/4” connection nipples for connecting heat generators and heat emitters
Buffer tank systems can also supply hot water when combined with an indirect tank
It has two heat exchangers, but an electric heating cartridge can also be installed
Uninsulated design, but can be purchased separately
The sensors can be placed in the casing pipes on the jacket
A safety valve and expansion tank must be installed
It does not have a drain and temperature sensor nipple
Also an excellent choice for solar systems
Not suitable for storing drinking water
Can only be filled with heating water
90° nipple layout
Long service life
Excellent quality
Hungarian product
3 year warranty
Energy efficiency rating: C
Technical data
Nominal capacity: 1000 l
Height with insulation: 2050 mm
Tipping height without insulation: 2350 mm
Diameter with insulation: 990 mm
Diameter without insulation: 790 mm
Bottom coil surface: 2.9 m2
Upper coil surface: 1.8 m2
Maximum tank operating pressure: 0.3 MPa
Maximum solar coil operating pressure: 0.6 MPa
Electric heater connection: Rp 6/4
Sensor connections: External casing pipe
Coil connection: Rp 1
Water connection: Rp 6/4
Storage loss: 132 W
Weight with insulation: 181kg
