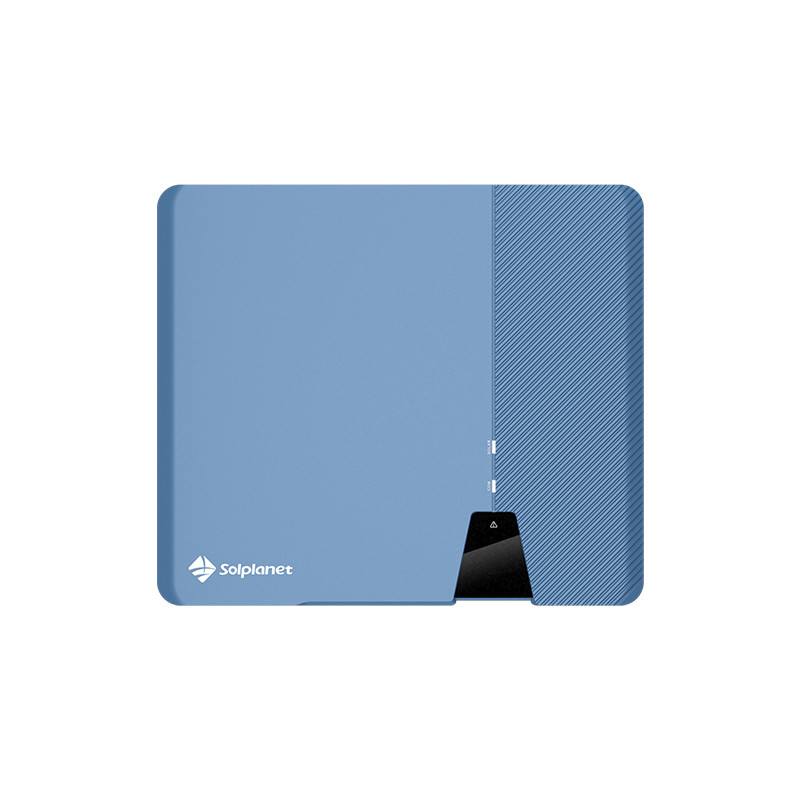

Solplanet ASW12K-LT-G2-PRO inverter

Main advantages:
- 10 years Hungarian warranty
- IP66 rated housing suitable for outdoor use
- Max. 20 A input current per string, compatible with 182/210 mm wafer-based PV modules
- Wide 150-1000 V MPP voltage range with low start-up voltage - increased production in low light conditions
- Quick and easy installation with standard tools
- Interchangeable II. type SPD
- Built-in Type II surge protection device on both DC and AC sides

Key features:
- Reliable
- Complies with international quality and safety standards
- DC reverse polarity protection and AC sensitive residual current monitoring function ensure long-term operation, with high emphasis on personal and equipment safety
- Built-in surge protection device (Type II) protects the inverter against lightning hazards
- IP66 rated dustproof housing ensures sustainable usability against most environmental influences
- High performance
- Up to 32 A nominal input current per MPPT unit, allowing the PV power plant to be assembled from a more suitable selection of high-performance bifacial and large-area PV modules
- Wide MPPT voltage range due to 150% PV system oversizing provides optimal energy yield and greater flexibility in almost any situation
- Optimized Electromechanical design with thermodynamics ensures high power density
- Easy to install
- Equipped with Phoenix Contact DC connectors for quick and easy installation with standard tools
- Plug and play wifi module (included) and 4G module (optional) allowing easy monitoring of up to five inverters
- Quick setup and easy commissioning with the smart, cloud-based SOLPLANET app, which allows you to practically monitor your PV system wherever you are

Parameters:
- MAX. NUMBER OF INPUTS 2
- MAX. GENERATOR POWER 18000 Wp
- PHASE 3
- WARRANTY 10 years
- INVERTER TYPE String
- COOLING Active
- PROTECTION DEGREE IP66
- HEIGHT 435 mm
- MAX. OUTPUT CURRENT 19.1 A
- NUMBER OF MPP-TRACKER 3
- WIDTH 503 mm
- DEPTH 183 mm
- WEIGHT 17.3 kg
- EUROPEAN EFFICIENCY (ΗEU) 98.2%
