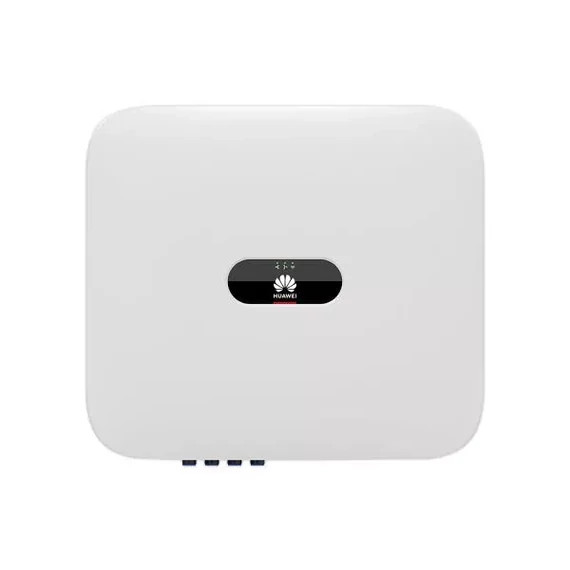

Huawei |Solar inverter symmetrical SUN2000-20KTL-M5 20kW

In stock 1 pcs

1 019 574 Ft

926 885 Ft

Begin: 10/04/2025 While stocks last!

Saving 92 688 Ft

Communication: Built-in Wifi module
Max. efficiency: 98.4 %
Recommended max. PV power: 29,760 Wp
Max. input voltage: 1,080 V
Starting voltage: 200 V
MPPT operating voltage range: 140 V ~ 980 V
Nominal input voltage: 600 V
Max. input current / MPPT: 22 A
Max. short-circuit current: 18 A
Number of MPP trackers: 2
Battery compatibility: NO
Battery support: NO
Max. charge / discharge power: NO
Mains connection: Three-phase
Nominal output power: 20,000 W
Nominal AC mains frequency: 50 Hz / 60 Hz
Max. output current: 33.5 A
DC voltage protection: Yes, compatible with protection class type II according to EN/IEC 61643-11
AC voltage protection: Yes, compatible with protection class type II according to EN/IEC 61643-11
AC overcurrent protection: Yes
Operating temperature range: -25 ~ +60 °C (derating above 45 °C @ rated output power)

Details

Operation Symmetrical
Number of phases Three-phase
Type Single
Power class 16-25 kW
Number of MPP trackers 2
Manufacturer Huawei
Manufacturer Part Number SUN 2000-20KTL-M5
Network connection 3-phase
Dimensions (including mounting frame) 525 x 470 x 166 mm
Weight (including mounting frame) 25 kg
Communication Built-in:Wifi module
Nominal output power 20,000 W
Manufacturer warranty 10 years
