Mechanical data
Width
1134.00 mm
Length
1762.00 mm
Height
30.00 mm
Weight
21.000 kg
Technical data
Busbar technology
multi
PERC technology
NO
Half-Cut
YES
Bifacial technology
NO
Overlap technology
NO
Back technology Contact
NO
Product warranty
25 years
Linear power warranty
30 years
POWER
435 W
Color
Full black
Mechanical load
5400 Pa
Module back pressure
2400 Pa
Operating temperature
-40 - +85 ◯C
VOC coefficient
-0.25
Temperature coefficient of Isc (short circuit current)
0.045 % / ◯C
PMAX coefficient
-0.29
Maximum fuse load
25 A
Efficiency
21.77 %
ISC
13.72 A
VMP
32.78 V
IMP
13.27 A
VOC
39.36 V
Logistics parameters
Quantity per pallet
36
Quantity per container
936
Gross width (with packaging)
1134.00 mm
Gross height (with packaging)
1762.00 mm
Gross thickness (with packaging)
1110.00 mm
Gross weight (with packaging)
21.000 kg
Packaging
Packaging height
1762.00 mm
Packaging width
1134.00 mm
Packaging thickness
1110.00 mm
Gross weight
786.00 kg
Packaging type
pallet
Quantity per pack
36 pcs

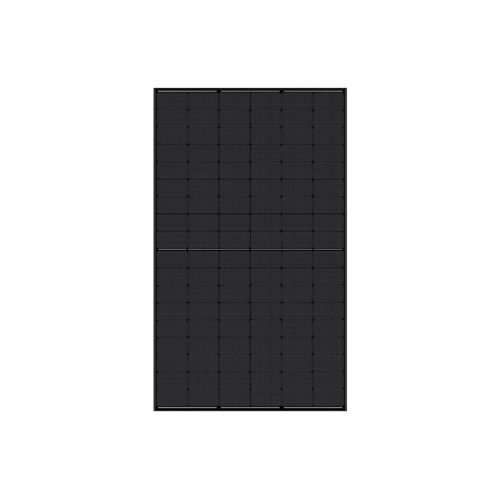

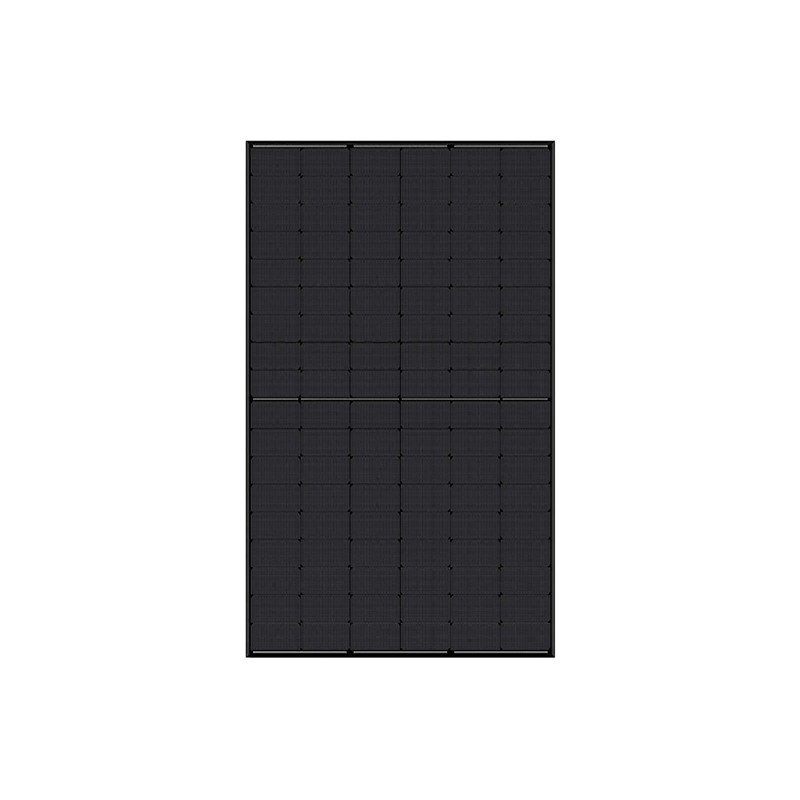

Jinko - JKM435N-54HL4R-B-F5_MC4 solar panel
